Our long-time customer Deutsche Windtechnik Service GmbH & Co. KG approached us with an urgent task. They needed equipment for the large component exchange of a wind turbine Enercon E80 as soon as possible. Amongst others, they needed the following components:
– 1 x transport frame hub
– 6 x support rotor blade flange
– 3 x storage rack rotor blade
– 2 x winch storage rack
– 2 x connecting pieces to lift the rotor blade
The following day (which was also the day of commissioning) we were at site to take measurements.
In 3 weeks, we were able to deliver a complete solution: Measurements, design, calculation, manufacture and delivery to our customer.
![Transportgestell Nabe](https://karl-wrede.de/wp-content/uploads/TG-Nabe-01-1-280x220.jpg)
Transport frame hub (CAD)
![](https://karl-wrede.de/wp-content/uploads/TG-Nabe-05-1-280x220.jpg)
Transport frame hub (FEM)
![Blattablagegestell](https://karl-wrede.de/wp-content/uploads/Blattablagegestell-tipseitig-01-280x220.jpg)
Storage rack rotor blade
![Blattständer](https://karl-wrede.de/wp-content/uploads/Blattstaender-280x220.jpg)
Support rotor blade flange
![lieferumfang großkomponententasch](https://karl-wrede.de/wp-content/uploads/IMG_2687-280x220.jpg)

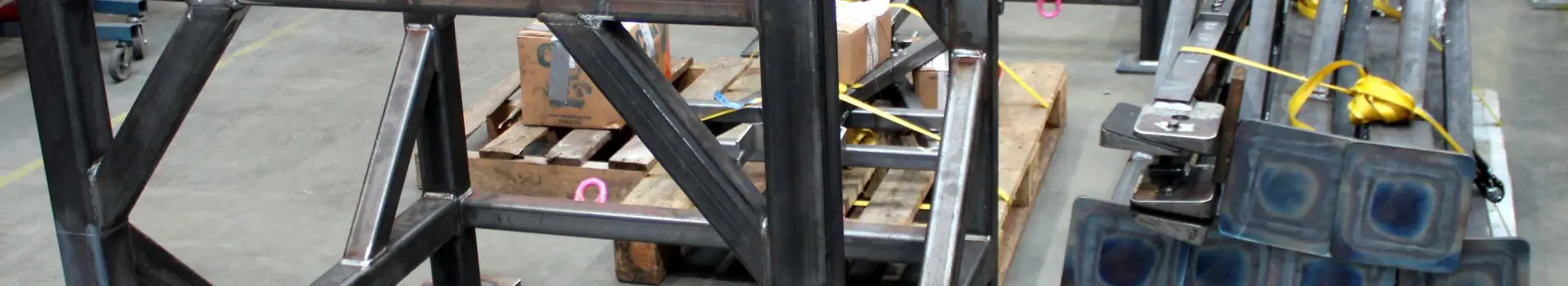

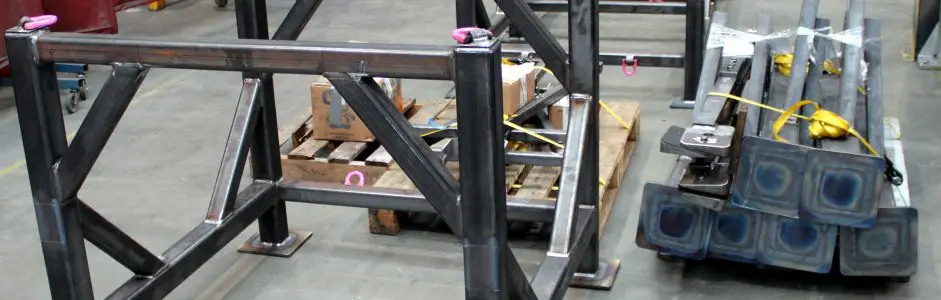

Scope of delivery large component exchange
![](https://karl-wrede.de/wp-content/uploads/IMG_2675-280x220.jpg)
Storage rack rotor blade
![](https://karl-wrede.de/wp-content/uploads/IMG_2669-280x220.jpg)
Support rotor blade flange
![](https://karl-wrede.de/wp-content/uploads/IMG_2685-280x220.jpg)
Connecting piece to lift the rotor blade
